MAD Bosch V.3 GT-R Intake Manifold 6/12/18 injector set up

MAD Bosch V.3 GT-R Intake Manifold 6/12/18 injector set up

from €5,818.00

Powered with Bosch Motorsport throttle bodies

No more throttle vibration issue due to the Bosch motorsport throttle bodies!

Don’t forget to order the Bosch extension harness.
(click here)

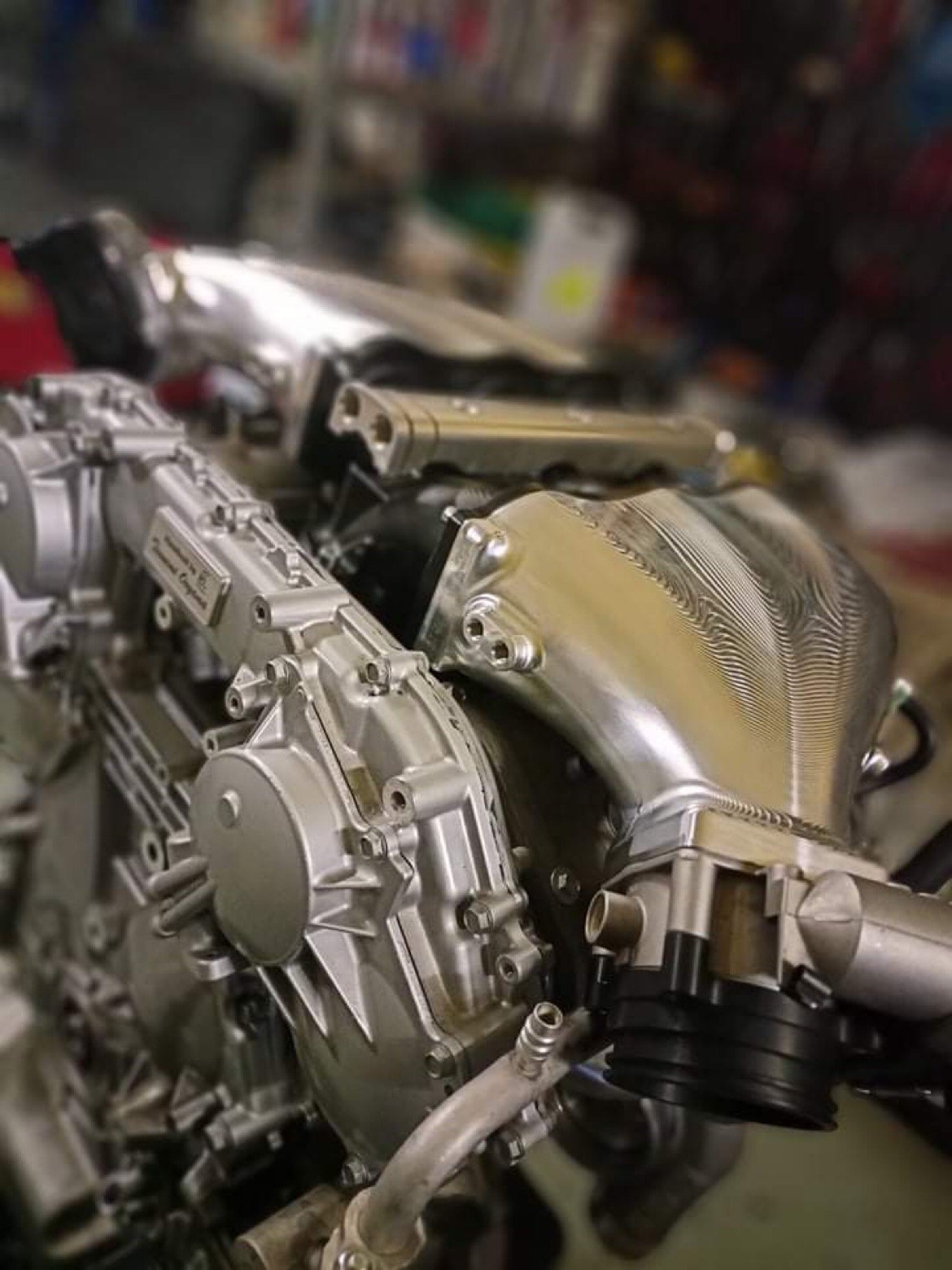

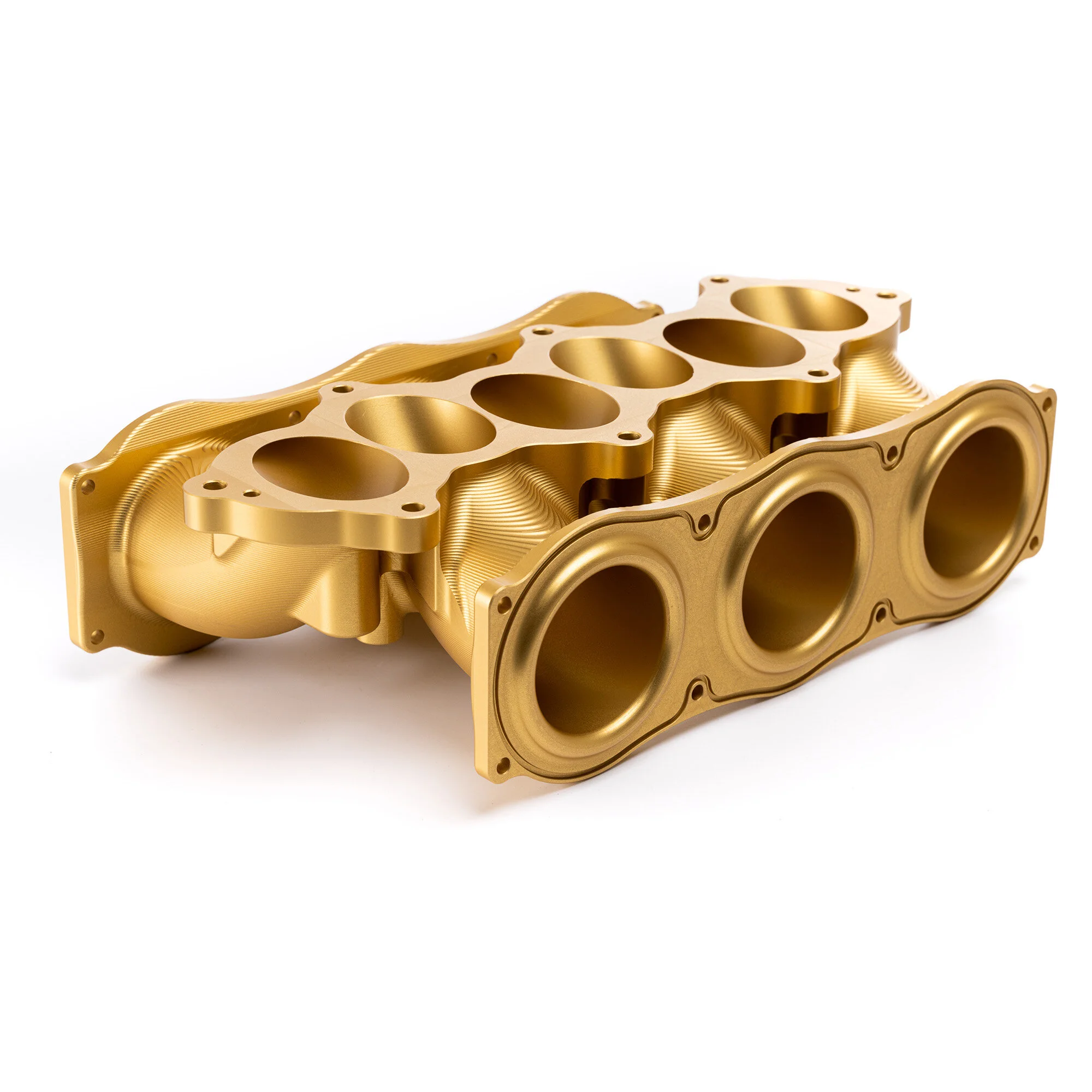

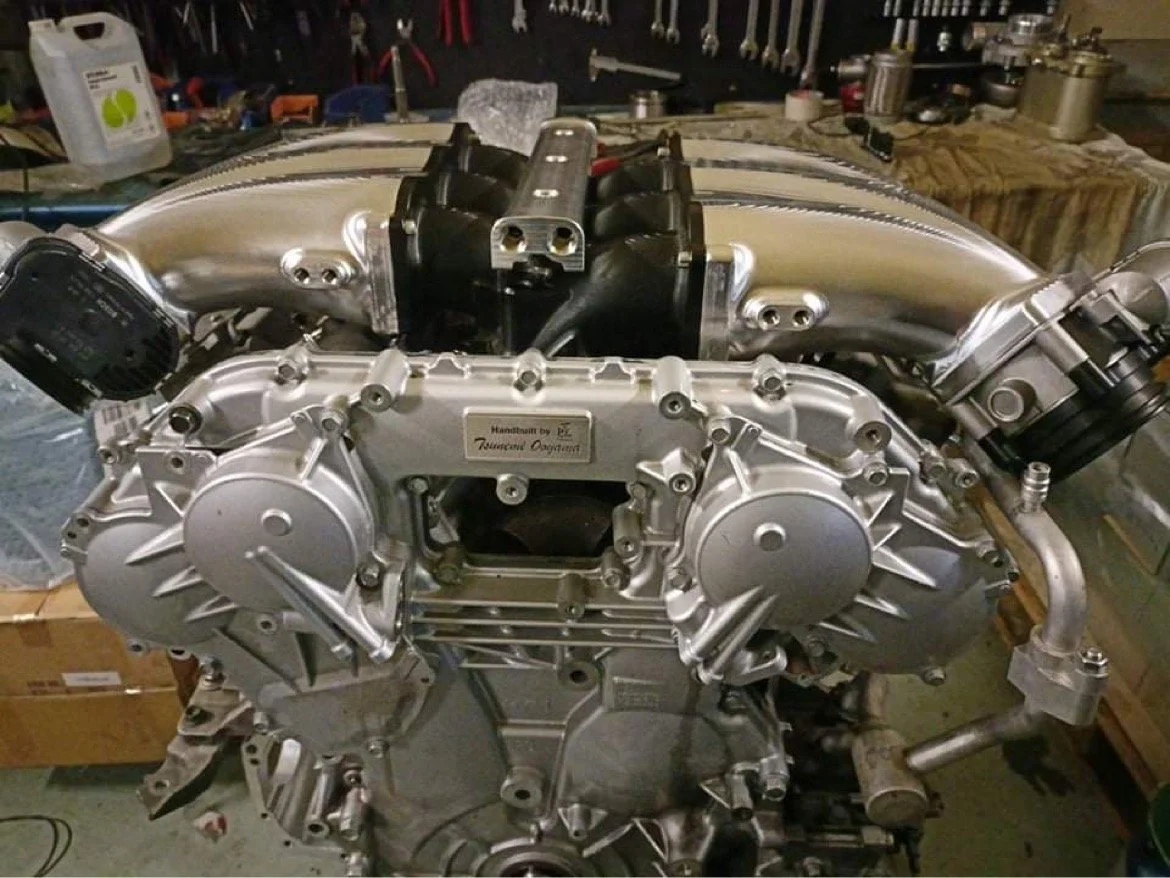

This is the next level of intake manifolds for your Nissan VR38DETT engine. Our intake manifold, in billet aluminium, will provide your engine with mad power in a super strong, reliable and market leading low weight package. Choose between a 6 or 12 fuel injector setup depending on your needs.

A recommended upgrade if you want MAD power from your engine.

Mix of colors-option: If you want more than one color (center/plenums), please contact us with the color combo together with your order number after you placed your order. (info@madsweden.com)

AN CONNECTOR KIT option: This packages include all the fittings you need to mount the manifold without a headache! The kit contains 19 pieces of high quality connectors.
This is a time saver option!

  1. AN6 kit contains AN6 fittings In/Ex of the 12 injector fuel rail, + all vacuum fittings.
    Recommended to use MAD fuel rails with AN6 or AN8 kit for easy mount.

  2. AN8 kit contains AN8 outlet of the 12 injector fuel rail, AN6 between engine fuel rails and third rail + all vacuum fittings.
    Recommended to use MAD fuel rails with AN6 or AN8 kit for easy mount.

  3. AN kits for the 6 injector manifold contain all AN fittings for the plenum chambers and vacuum Not for the engine fuel rails!

Designed and manufactured in Sweden by MAD Sweden.

Estimated lead time: 20 days + shipping
Prices in Swedish Krona (SEK) and excluding
VAT.

AN connector kit IN/EX:
Color:
Injectors:
Quantity:
Add To Cart


Power to the VR38DETT

MAD Intake Manifold is designed and tested to be the most efficient and power-producing billet intake manifold available. When our engineers designed this work of art, careful calculations and competition analyzes were made before it was put into production. With the world's highest flowing intake manifold mounted on your GT-R you never have to consider this part the holding you back for more horsepowers!

Why MAD intake manifold?

  • Version 3 The most powerful VR38 intake manifold on the market 1 L / chamber more air than the v2.

  • Eye catching MAD design

  • Fully O-ringed, no OEM gaskets needed

  • More than 11% lighter than the leading VR38 carbon/aluminium intake manifold

  • Dual MAP sensor ports and more vacuum fittings

  • Balance pipe with o-rings made in aluminium to prevent blow off

  • Billet 6082 aluminum plenums

  • High flow intake runners

  • Third rail (12/18 injector option) 3 x M16 x 1,5mm

  • Billet lower intake runner

  • V. 3 “Only Bosch throttle bodies fit!”

  • Pressure tested to +10 bars (145 psi)

  • Flow tested for equal flow in runners

  • Dyno tested

  • 100% Made in Sweden

  • Total vacuum ports: 8 x 1/8-28 BSP

  • Each plenum chamber: 1 x M14 x 1,5mm

I don’t build normal. That being said I only work with the best and amazing people when doing so. MAD Sweden really knocked it out of the park with these parts.
— Charlie Turbos, USA (@charlieturbos)
If you haven’t seen it in the flesh you cannot understand the sheer quality of these parts, truly another level.
— John Morgan, UK (@johnny.dangerousr35)
Rob Harper sais this intake manifold seems to make a great deal of power!
— Vaughn Simon, US (The Shop Houston)


Color options

At MAD we offer all our billet aluminum products in 5 different anodized color options. Anodizing increases resistance to corrosion and wear which means a better protected product and at the same time giving it a mad color finish to separate your build from the rest.

Colors available: Gold, Red, Blue, Black and Light grey.

Our MAD GT-R Intake Manifold is also available with a mix-of-colors option, where you can assign a different color on each part to create a truly mad look in your engine bay.

Showcasing the Gold, Red, Black and Light grey color options.

Billet Aluminium

At MAD we specialize in producing products out of high quality billet aluminium. A billet is essentially a solid block of material, in our case aluminium. The billet is carved out by an CNC milling machine in a given shape to create the final product. This method gives us a high degree of precision combined with an impressive structural strength and very low weight - perfect for performance cars.

As an added bonus we get that mad looking product that many of our customers describe as: “A piece of art”.

CNC milling machine working on an aluminium billet.



Benefits

  • Lightweight

  • Plenums made for Bosch Motorsport TBs

  • Very powerful

  • Fully o-ringed

  • Tested and approved

  • Custom colors

  • Limeted lifetime warranty

Application

  • Nissan VR38DETT engine

Installation note
The OEM fuel rails will not work
. Use the MAD fuel rails that are designed for high fuel flow and perfect fit.

Show MAD fuel rails

Specifications

Material: 6082 aluminium alloy

  • All O-ring sealing

  • Billet balance pipe with o-rings

  • 2 MAP sensor sockets (one plug in package)
