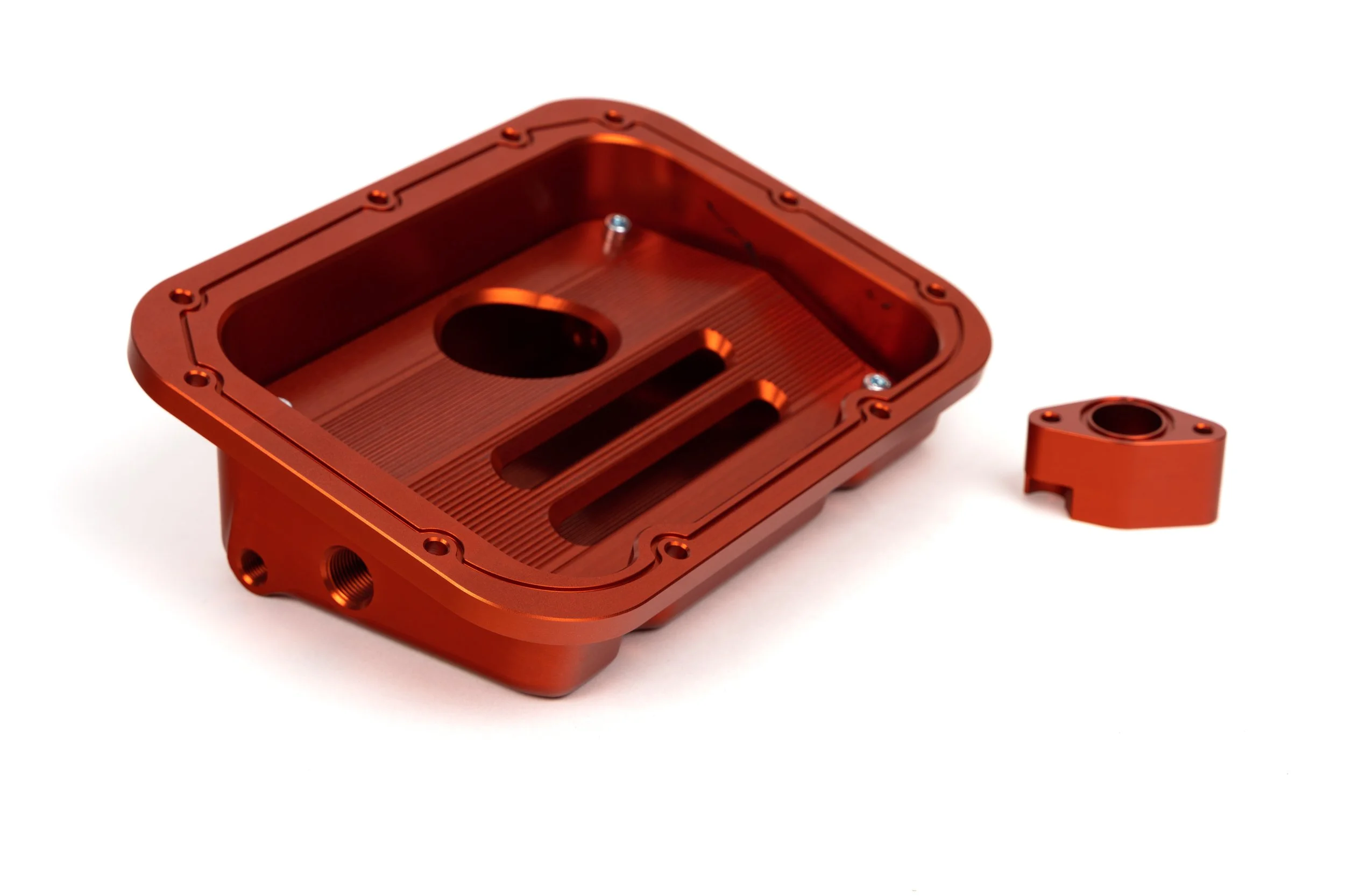

MAD GT-R billet Deep Engine Oil Pan
MAD GT-R billet Deep Engine Oil Pan
INCREASE BOTH OIL CAPACITY AND RELIABILITY
This is the ultimate oil pan for the Nissan VR38 engine series. We have improved the design and removed all weaknesses that constrained the madness. Our oil pan will get you an increased oil capacity, cooler oil temperatures and overall a more reliable engine for MAD performance.
A highly recommended upgrade for everyone from OEM to those who have increased the power and use the car for active driving.
Designed and manufactured by MAD Sweden.
Estimated lead time: 2-12 days + shipping (Anodizing 10-12 days)
Prices in Swedish Krona (SEK) and excluding VAT.
Why replace the oil pan?
The stock oil pan from Nissan is alright but it’s not as it should be - MAD. On higher revolutions air bubbles are introduced to the oil which decreases the pickup and drops the pressure, causing damage to engine bearings over time. We solved this using a deeper pan with 1 liter increased oil capacity and added a market first baffle system. This eliminates the pickup issues, removes the air bubbles and prevents oil from splashing on the back wall during hard accelerations.
Another weak point of the stock pan is the drain plug placement. It’s not located in the bottom which means you will not drain all the old oil during oil service. We placed our plug at the very bottom for easy maintenance.
Most pans for the Nissan GT-R is installed using sealing to prevent leakage, but this sealing often ends up inside the pan as small pieces that either blocks the pickup filter or gets through into the engine. Using sealing also means it’s a hassle if you want to detach the pan as you have to scratch off the dried sealing, clean the edges and apply new sealing before attaching it again. Sealing is economical but has its disadvantages. At MAD we include an o-ring to seal the pan with ease every time.
TEST DATA
Tests made at Hockenheim ring in Germany with full spec race car on slicks show clearly show how effective the baffle system works on high Gs.
With OEM oil pan we measured oil pressure as low as 0.9 bar (13.0 psi) in some sharp corners and always when hard braking after the long straight.
With the MAD oil pan installed oil pressure never went lower then 2.74 bar! (39.74 psi)
COLOR OPTIONS
At MAD we offer all our billet aluminum products in 5 different anodized color options. Anodizing increases resistance to corrosion and wear which means a better protected product and at the same time giving it a mad color finish to separate your build from the rest.
Colors available: Gold, Red, Blue, Black and Light grey.
Our MAD GT-R Intake Manifold is also available with a mix-of-colors option, where you can assign a different color on each part to create a truly mad look in your engine bay.
BILLET ALUMINIUM
At MAD we specialize in producing products out of high quality billet aluminium. A billet is essentially a solid block of material, in our case aluminium. The billet is carved out by an CNC milling machine in a given shape to create the final product. This method gives us a high degree of precision combined with an impressive structural strength and very low weight - perfect for performance cars.
As an added bonus we get that mad looking product that many of our customers describe as: “A piece of art”.
BENEFITS
No oil windage
Market first baffle system
0.95 liter added oil capacity without oil pan hanging below front subframe
Cooler oil temps from added thermal capacity
Increased engine reliability
O-ring sealing
Optimal drain plug placement for easy maintanance
AN 8 connector hole for return of oil (V.2)
APPLICATION
2008-2010 (CBA) Nissan R35 GT-R
2011-2016 (DBA) Nissan R35 GT-R
2017+ (EBA) Nissan R35 GT-R
Fits all USDM, JDM and European Models (LHD & RHD
INSTALLATION NOTE
Requires trimming of the OEM plastic under tray in order to fit our deep oil pan. How much depends on model year. Inner layer on 2013 and earlier - completely on 2014 and newer. For new models we can help you with a skid plate to protect the pan. (option)
SPECIFICATIONS
Weight: 1.6 kg
Dimensions: 26.5 x 8 x 19.3 cm (WxHxD)
Material: 6082 aluminium alloy
What’s included
MAD GT-R Engine Oil Pan
Pickup adapter
O-ring
10 x M6x20
5 x M6x16
1 x M6x50
1 x M6x35
1 x AN8 plug (V.2)
